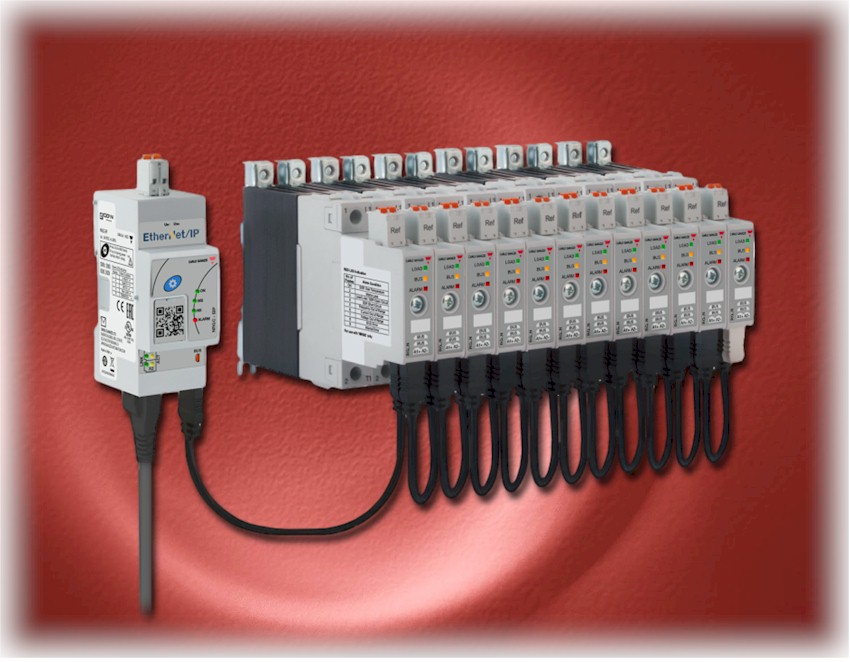

March 2021 – CARLO GAVAZZI has launched the NRG Series of EtherNet/IP, PROFINET, and Modbus Communication Controllers and multifunction Solid State Relays.
The NRG Series is designed for real-time communication with a controller, allowing machine builders to make informed decisions, solve urgent problems on short notice and aid in the design of autonomous machines. By interfacing with machine controllers and PLCs across EtherNet/IP, PROFINET and Modbus networks, the NRGC-EIP, NRGC-PN and NRGC Controllers, seamlessly exchange data to achieve industrial digitalization. The NRG Series provides an all-in-one solution for fast switching, accurate monitoring, and high-speed communication, all of which are critical to predicting equipment failures, reducing unplanned stoppages, and optimizing overall performance.
Features of the NRGC-EIP, NRGC-PN and NRGC Controllers include:
- EtherNet/IP™ (ODVA compatible), PROFINET (PI certified) or Modbus RTU over RS485
- Read-outs: current, voltage, power, energy consumption (kWh), and SSR running hours
- Malfunction detection: mains loss, load loss, SSR short circuit, SSR over-temperature, voltage/current/frequency out of range
- Up to 32 RG..CM..N SSRs in one NRGC-EIP, NRGC-PN or NRGC bus chain
- Up to 48 RG..D..N SSRs in one NRGC bus chain
Features of the RG..D..N include:
- 1-phase, AC zero cross solid state relays
- Up to 660 VAC, 90 AAC switching
- 4-32 VDC control
- With and without integrated heat sinks
- Screw and box clamp connection options
Features of the RG..CM..N Solid State Relays include:
- 1-phase, AC zero cross solid state relays
- Up to 660 VAC, 90 AAC switching
- Default control through communication interface or DC control
- With and without integrated heat sinks
- Selectable switching modes: ON/OFF or power control (burst, distributed or advanced full cycle)
- Measurements and diagnostics accessible through communication interface
- Screw and box clamp connection options
The NRG Series is the best choice for real-time monitoring and predictive maintenance to reduce overall maintenance costs and machine downtime.
The NRG Series is available from Carlo Gavazzi’s network of sales offices and distributors in the Americas, or at www.GavazziOnline.com.
