Solutions for EV Charging Stations and DC Voltage Monitoring
CARLO GAVAZZI offers EV Charging Meters for monitoring either the AC side or DC side of DC charging stations. This allows the user to be billed for only the actual energy being used.
Our DC EV Charging meters are available for up to 1000 VDC and up to 600 ADC and can be mounted to both busbar and cable lugs and require no exernal current sensors.
Our AC EV Charging meters are available for use with standard current transformers. Furthermore, we offer inline types that measure a line current up to 65 A directly thereby eliminating the cost of current transformers.
With the current surge in electric cars and light rail transit, monitoring of DC Voltage systems is becoming increasingly important to ensure the reliability of the service. CARLO GAVAZZI has DC voltage metering devices and transducers for DC bus monitoring of the voltage, current, power and energy and provide an interface to your managment system.
In addition, we can provide our UWP Monitoring Controller which can monitor a network of meters for logging, viewing, and uploading of data to cloud based data storage systems. Additionally, it provides alarming functions on power anomolies by sending out alarm text or emails to maintenance personel.
DC Charging Levels
| Level | Input Voltage | Power (Max) | Region | Output (Max) |
|---|---|---|---|---|
| 1 | 120VAC/15A/1ϕ | 1.8kW | Americas | - |
| 2 | 208-240VAC/80A/1ϕ | 19.2kW | Americas/Europe | - |
| 2 | 230VAC/16-32A/3ϕ | 22kW | Europe | - |
| 3 | ~480/600VAC/3ϕ | 500kW | Americas | 920VDC |
| 3 | ~400VAC/3ϕ | 500kW | Europe | 920VDC |
| 3 | ~400VAC/3ϕ | 3.75MW | Europe | 1250VDC |

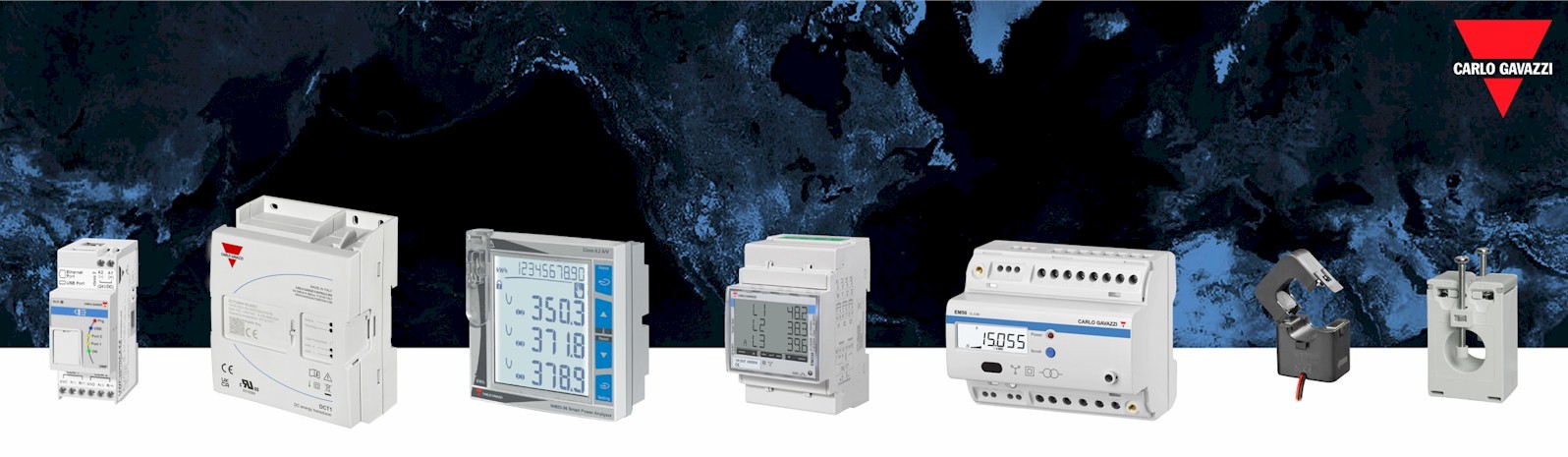

Our Meter Range for EV Charging
DCT1 Series
Get Data Sheet
- DC Energy Meter for EV DC Fast Charging
- 150 to 1000 VDC, Up to 600 ADC
- Multi-protocols: RS485 Modbus RTU or SML to adapt to different charger controllers
- Fast serial data refresh time
- CTEP compliant with Energy resolution of 0.0001 kWh
- View Our DCT1 Product Page for Additional Information
EM511/112 Series
Get Data Sheet
- Compact DIN mount , self-powered energy meters
- 1 phase 120 V / 240 V connection
- Up to 100 AAC input - does not require external CTs
- Available with kwh pulse output or RS485 (Modbus)
- CTEP compliant with Energy resolution of 0.0001 kWh
- View Our EM511 Product Page for Additional Information
EM330/ET330 Series
Get Data Sheet
- Compact DIN mount Energy Meter or Transducer
- 1, 2 and 3 phase, 480 V connections
- Optional kwh pulse output or Modbus-RTU communication
EM530
Get Data Sheet
- DIN mount energy analyzer
- 2 and 3 phase, 400 V connection
- Available with kwh pulse output or RS485 (Modbus)
EM540
Get Data Sheet
- DIN mount energy analyzer
- 2 and 3 phase, 400 V connection
- Up to 65 AAC input - does not require external CTs
- Available with kwh pulse output or RS485 (Modbus)
EM24 Series
Get Data Sheet
- Din mount Energy Analyzer
- 1,2 and 3 phase, 600 V connections
- Optional digital inputs and outputs
- Optional Modbus-RTU or Modbus-TCP communication
Current Transformers
Get Data Sheet
- Available for currents up to 4000 A
- Solid, split core and Flexible Rogowski coil versions
- 0-5 A and mV outputs
UWP
Get Data Sheet
- Powerful monitoring gateway and controller for up to 128 meters
- Alarm functions with notification via SMS or email
- Access of meter data via BACnet, Modbus or Rest API
- Uploading of data to Microsoft Azure or Amazon AWS using MQTT or via SFTP or email
