CARLO

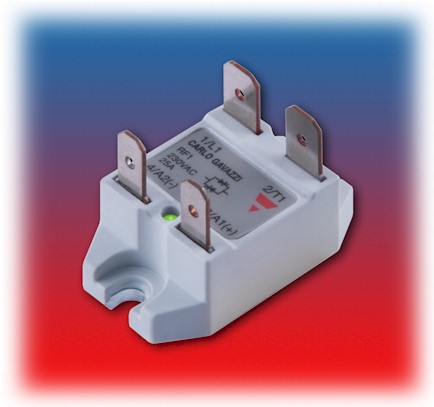

GAVAZZI is proud to announce the launch of our new RF1 Series Compact Solid State Relay. The RF1 Series provides compact solid state
switching suited for applications with confined space. Long lifetime is ensured by CARLO
GAVAZZI’s new assembly technology that significantly reduces stresses of the power
semiconductor.
The RF1 Series is ideally suited for applications where trouble free operation is
required for a large number of cycles and where space is limited. The RF1 Series occupies only 30% of the panel space typically required for a
standard panel mounted (hockey puck) SSR, it’s merely 36 x 21 x 24mm (H x W x D).
The RF1 Series is designed for control of resistive loads. The zero switching type
(RF1A), switches ON when the voltage crosses the AC sine wave’s zero crossover point.
The instant-ON type (RF1B), switches on at the instant when control voltage is applied.
Integrated transils provide protection
against over-voltage. A green LED indicates the presence of control voltage. Fast-on

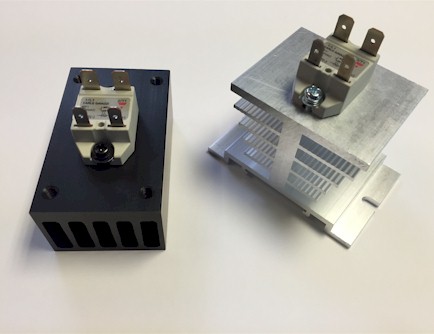

terminals for the input and output voltage enable fast and secure installation. The RF1 Series is provided with a convenient pre-attached thermal pad, making
it ready for mounting on a panel or heat sink. |
The new RF1 Series are available from CARLO GAVAZZI’s North American network
of sales offices and distributors, or at www.GavazziOnline.com.
For more information RF1 Series, please click on any of the links below: |
|
