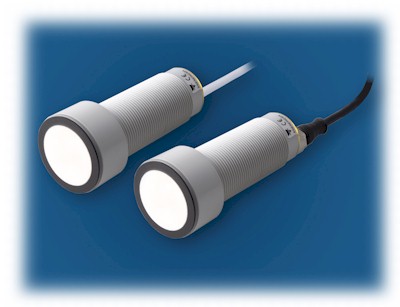

The UA30CAD60 Series is available in one of two different output configurations. The first has two digital NPN or PNP outputs. The second has an analog output in either 4-20mA or 0-10VDC, as well as one digital NPN or PNP output.

The two digital outputs can be set as standard switching outputs with two set points, or as a window function. The output can be set with a positive or negative slope for both filling and emptying applications.

The UA30CAD60 Series sensors are designed for use in a wide variety of applications, including: material handling, food & beverage, HVAC, packaging, plastics, agriculture, and automotive.

Technical specifications include

	Detection Distance of up to 6 Meters
	Two Digital Outputs or One Analog & One Digital
	12 to 30 VDC Power Supply
	IP67 Ratings & NEMA 1, 2, 4, 4X, 5, 6, 6P, 12
	Set-up by a Simple Teach Routine
	M30 PBT housing with Cable Connection
	cULus approval as well as CE marking

For more information about the UA30CAD60 Series, please click on any of the links below:
