June 2014 – CARLO GAVAZZI is proud to announce the launch of their new Multi-voltage CA30CLN12M Series Capacitive Sensor with Relay and Optional Time Delay Output. These sensors provide reliable detection of solid, fluid or granulated substances and are equipped with a two amp SPDT relay output, with a time delay of up to ten minutes. This self-contained solution assures a robust output and sensing flexibility.

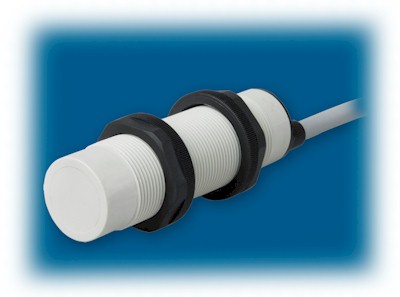

The CA30CLN12M Series is constructed in a threaded M30 housing, for simplified mounting ease. The back of the sensor features up to two IP67 integrated adjustment potentiometers for adjusting the sensing distance and an optional potentiometer for the time delay. The adjustable time delays available include: On-Delay or Off-Delay.

This sensor series is specifically designed for feeding systems and silo applications in the agricultural market, but can be used in most industrial applications.

Technical specifications include

Multi voltage power supply 21 to 255 VAC/DC
2 A SPDT relay output
M30 PBT housing with cable connection
Up to two integrated IP67 rated trimmer potentiometers
Multi-turn potentiometer for distance: 4-12 mm
Optional multi-turn potentiometer for time delay: 1 second to 10 minutes
Laser printing of the main specifications on the sensor
IP67 ratings and NEMA 1, 2, 4, 4X, 5, 6, 6P and 12
cULus approval as well as CE marking

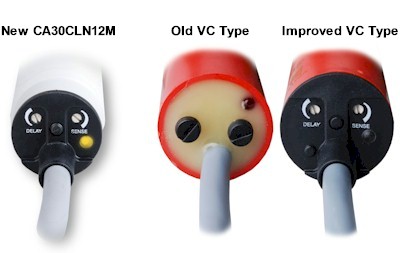

With the release of this new multi-voltage capacitive sensor, CARLO GAVAZZI has also improved our popular VC11/12 Series. It carries the same 21-255VAC/DC supply voltage, and as you can see on the far right, it now a strain relief and the potentiometers are no longer hidden behind protective screws, as the new trimmer potentiometers are IP67 rated:


For more information about the CA30CLN12M Series, or the improved multi-voltage VC11/12 Series, please click on any of the links below:
