| The product is intended to replace electromechanical contactors
when switching speeds are quite frequent. Their compact size, easy installation and
flexible configuration make these devices the ideal solution, especially when

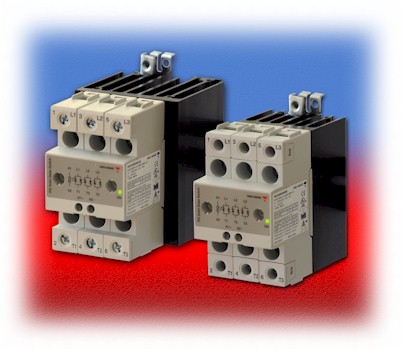

retrofitting. The RGC Series of solid state relays and contactors are designed
for switching resistive as well as inductive loads and are UL Listed as Motor Controllers.
Reliable operation is ensured by means of the integrated overvoltage protection, high I2t
ratings and immunity conformance to industrial standards. Additionally, an innovative
thermal design improves the product lifetime. RGC2 and RGC3 Series devices are available in two frame sizes: 54mm or 70mm wide. RGC2, the 2-pole switching device, offers three current ratings of
25, 40 and 75AAC per pole at 40°C. While RGC3,
the 3-pole switching device, offers five current ratings ranging 20 to 65Amps per pole.
Optional monitoring feature offers possibility of detecting status of mains and load, as
well as internal RGC failures: open or short circuit and overheating. Alarming is
implemented with LED indication, electromechanical relay output and auxiliary transistor
output.
RGC Series solid state relays and contactors are a
ready-to-use, out-of-the-box solution, mainly targeting Plastics & Rubber, Packaging
& Wrapping, HVAC and Food & Beverage markets. Features include:
 |
3-Phase solid
state switching devices |
|
Integral heat
sink with robust metal DIN rail adapters |
|
Ratings up to
600VAC and 75Amps per phase |
|
UL certified
motor ratings of up to 25Hp at 600VAC |
|
UL SCCR rating
of 100kA with J class fuses |
|
cULus listed, CE
compliant |
|
Amperage rating
based upon 40°C ambient temperature |
|
Integrated MOV
for overvoltage protection |
|
Integrated
cooling fan on higher amperage models |
|
Optional
monitoring of SSR and load failures |
|
High I2t of up
to 15,000 A2s |
|
Optional EMR and
transistor alarm outputs |
The RGC2 and RGC3 Series are available from CARLO GAVAZZI’s North American network of sales
offices and distributors, or at www.GavazziOnline.com. For more information on the new RGC 2 and 3-Pole Series, please click on either of the links below, or
visit our website at www.GavazziOnline.com |
