| August 2012 - CARLO GAVAZZI is launching its newest addition to the RGC family of Solid State Contactors, with the introduction of the RGC1F Series with
Integrated Fuse Holder and Optional System Monitoring. The RGC1F Series includes three functions in one housing: Power Switch, Short Circuit
Protection (by semiconductor fuse) and System Monitoring. RGC1FA is the version including the power switch and integrated fuse holder
while the RGC1FS adds functionality of the fuse, solid state
contactor and load monitoring. The

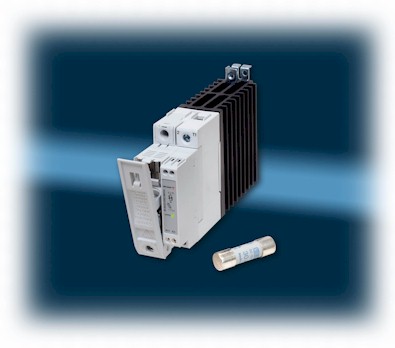

front of the product can be opened for easy access to the fuse holder, which accepts fuses
from a wide range of manufacturers. A fast acting semiconductor fuse provides short
circuit protection for both the RGC1F’s solid state semiconductor and the load cables. The
product width is 35mm for the full range and covers applications up to 40Amps AC and
600VAC.
|
| This new range of products is designed to switch both heaters and
motor loads. The integrated features like short circuit protection, monitoring and heat
sink make the RGC1F the ideal solution for markets such as Plastic
& Rubber, Food & Beverage, Electronics or Print and Glass. The RGC1F Series main technical features include:
 |
RGC1FA: Solid State Contactor with fuse holder |
|
RGC1FS: Same as the RGC1FA,
but with system monitoring
- Monitoring: LED plus transistor alarm output
- Monitoring of heater break or open fuse |
|
Nominal current
ratings at 40ºC: 20, 30 or 40AAC |
|
Nominal output
voltage ratings: 230 or 600VAC |
|
Control voltage
range: 3 to 32VDC or 4.5 to 32VDC |
|
Integrated fuse
holder for a semiconductor fuse |
|
Integrated MOV
for overvoltage protection |
|
100kA UL508 SCCR
rating with external J fuse |
|
Product width of
merely 35mm |
|
cUL Listed (20
and 30A) versions, CE, RoHS
|
The RGC1F Series with Integrated Fuse Holder and Optional System
Monitoring are available from
CARLO GAVAZZI’s network of sales offices, distributors or www.GavazziOnline.com |
|
