EM530 and EM540 Energy Analyzers

February 2022 - CARLO GAVAZZI is excited to announce the launch of our new EM530 and EM540 Three Phase Energy Analyzers. These compact analyzers are an exciting new addition to our well-established range of energy meters and power analyzers, which are targeted to assist manufacturers and end users in monitoring and managing escalating energy costs. The EM530 is a Class 0.5S (kWh) analyzer which measures currents up to 10,000A via 5A current transformers, and the EM540 is a Class 1 (kWh) analyzer which measures current up to 65A via direct connection, eliminating the need for current transformers. These 3-phase power analyzers can be used for two and three phase systems, as well as wild-leg systems. They can measure most relevant instantaneous electrical variables, energy consumption, and harmonic distortion.

Both EM530 and EM540 feature high speed 100 ms serial data refresh rates, making them ideal for load balancing energy storage or EV charging applications. Fast commissioning is possible thanks to an intuitive wizard setup menu, along with instant notification of wiring errors and suggestions for correcting them.

The EM530 and EM540 are ideal for many Building and Industrial Automation applications, including cost sharing, energy analysis for energy efficiency, power metering for PV energy storage, and indoor or temperature-controlled EV charging. Their compact size makes them a perfect fit for any panel.

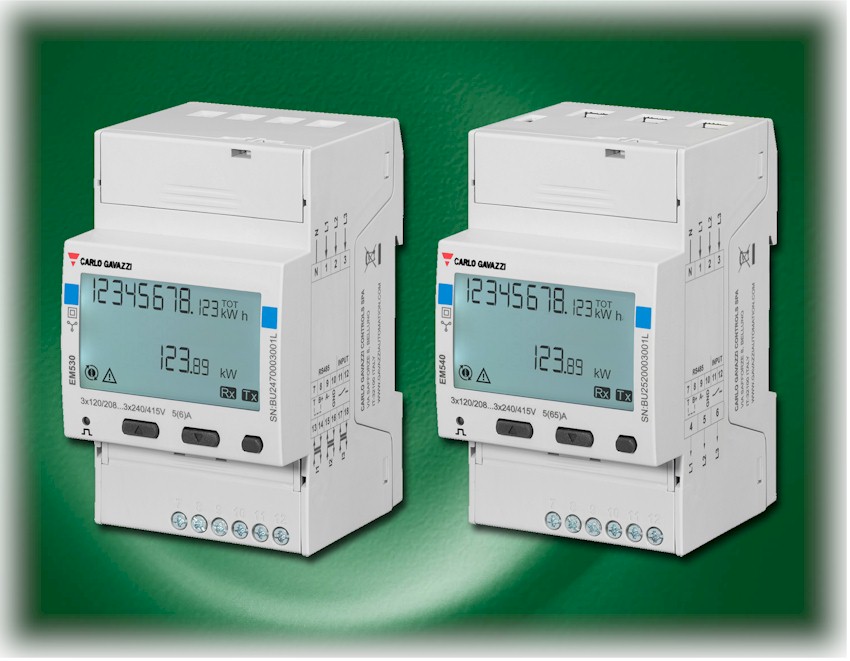

EM530 and EM540 Energy Analyzers

The features of the EM530 and EM540 include:

The EM530 and EM540 Energy Analyzers are available from Carlo Gavazzi’s network of sales offices and distributors in the Americas, or at www.GavazziOnline.com

More information on these new products can be found from the links below:


Carlo Gavazzi has sales offices spread across the Americas. Contact us today:

Or visit us at www.GavazziOnline.com
