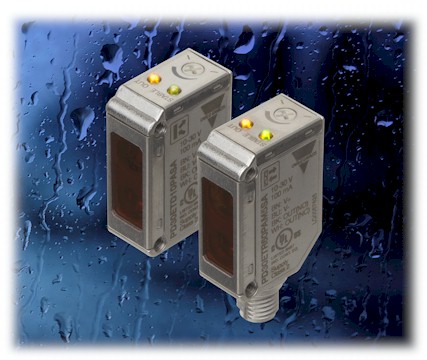

July 2016 – CARLO GAVAZZI is proud to announce the launch of their new series of IP69K stainless steel photoelectric sensors, the PD30ET Series.

The new PD30ET Series complements the already popular PD30 photoelectric sensors, with robust AISI316L stainless steel housings. With an IP69K environmental rating and ECOLAB certification, reliable operation is ensured even in the harshest of environments. The PD30ET provides outstanding resistance to high-pressure wash-down, aggressive cleaning agents, harsh disinfectants and high temperatures frequently found in the Food & Beverage industry. The PD30ET is also ideal for other harsh environments, including Material Handling, Packaging, Agriculture, and Mobile Equipment.


Main features of the PD30ET Series include:

Industry standard dimensions:
  - Housing: 11 x 21 x 31.5mm
  - Mounting: 25.4mm spacing, (2) M3 holes
AISI 316L stainless steel housing
NO and NC outputs, NPN or PNP versions
10–30VDC power supply
IP67, IP68 and IP69K ratings
cULus, ECOLAB, and CE approved
Top potentiometer set-up
Connections: 4-pin M8 plug or 2m cable
The PD30ET Series includes the following sensing types:
Diffuse reflective:
  - Extremely wide-angled (up to 200mm)
  - Long range (up to 1m)
Background Suppression, Active Pixel Sensor:
  - Visible red light version (up to 200mm)
  - Infrared version (up to 200mm)
Retro-Reflective:
  - Polarized visible red light (up to 6m)
  - Non-polarized infrared (up to 6m)
Through-beam versions (up to 15m)

For more information on the PD30ET Sensors, please click on any of the links below:

Data Sheets:
 Extreme Wide Angle Diffuse Reflective (PD30ETD02xxWE)
 Long range Diffuse Reflective (PD30ETD10xxSA)
 Background Suppression, Visible Red Light (PD30ETB20xxSA)
 Background Suppression, Infrared Light (PD30ETB20xxIS)
 Polarized Retro-Reflective, Visible Red Light (PD30ETP60xxSA)
 Non-polarized Retro-Reflective, Infrared Light (PD30ETR60xxSA)
 Through-Beam (PD30ETT15xxSA)
 Press Release
 Product Brochure
 Video
 Distributor Pricing Information
Application Notes:
 Food tray detection on conveyor systems
 Missing lid detection on yogurt containers
PD30ET Tutorials
 Diffuse Reflective (PD30ETD10)
 Background Suppression (PD30ETB20)
 Polarized Retro-Reflective, Visible    Light (PD30ETP60)
 Non-polarized Retro-Reflective, Infrared   Light (PD30ETR60)
 Through-Beam (PD30ETT15)
