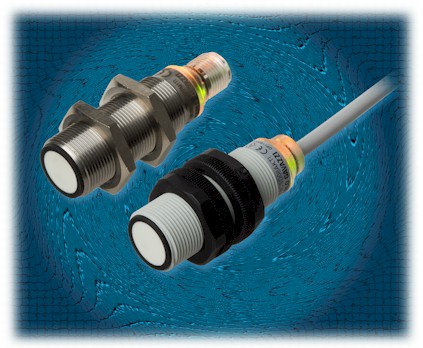

November 2015 – CARLO
GAVAZZI is pleased to announce a new range of compact ultrasonic sensors, available in M18
housings constructed of thermoplastic (UA18CSD
Series) and stainless steel (UA18ESD Series). Despite their compact 53 to 61mm overall housing
length, these new sensors provide long sensing distances up to 800mm.
They provide an excellent
cost/performance ratio for OEMs in a variety of markets, including Wood, Material
Handling, Food & Beverage, HVAC, Packaging, Plastic & Rubber, Agriculture, Glass
& Ceramics and Automotive.
Both digital output and analog output
versions are available. Digital NPN or PNP versions can be either NO or NC, and support
two different set-points, providing a detection “window.” The analog output
versions include 4-20mA or 0-10VDC, with positive or negative slope. A simple
“teach-by-wire” function provides an easy means to set up the sensor parameters.
Standard connection options include either a two meter PVC cable or M12 connector.
All UA18CSD
and UA18ESD sensors are IP67 rated, have cULus UL508 approval,
and can be operated with 10 to 30VDC. The UA18CSD
and UA18ESD compact sensors are a perfect complement to Carlo
Gavazzi’s broad line of ultrasonic sensors in M12, M18, and M30 housings, with
sensing distances up to 6 meters.
|
| The UA18CSD and UA18ESD
Series are available from Carlo Gavazzi’s North American network of sales offices,
distributors, and online at www.GavazziOnline.com.
