August 2015 CARLO

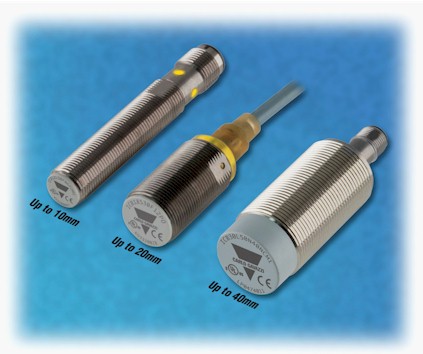

GAVAZZI is pleased to announce the expansion of the popular ICB Series Inductive Proximity Sensors. New Extra-Extended ICB12, ICB18 and ICB30 sensors provide sensing ranges up to three times
the sensing distances of standard M12, M18, and M30 cylindrical inductive proximity
sensors! In addition, Carlo Gavazzi has responded to feedback received from customers to
provide some important enhancements to the ICB line.
The new ICB Series stands out from other sensors offered on the market thanks to these key
features and benefits: |
|
|
|
The Extra Extended ICB sensors enable a broader range of applications to
be supported, by extending the sensing range up to three times the standard sensing
distance: 10mm for M12 sensors, 20mm for M18 sensors, and 40mm for M30 inductive sensors. |
|
True microprocessor-based
technology allows final calibration after the assembly, enabling greater temperature
stability, reliability, and repeatability. |
|
The ability to re-program the
microprocessor opens up opportunities to customize the sensor to specific OEM requests,
such as special output types, switching frequencies, and timing functions. |
|
Clearly visible diagnostic
LED(s) are easily viewed from any direction, and provide sensor status, set-up assistance,
as well as short circuit or overload indication. |
|
The new set-up function
ensures reliable operation by providing stability diagnostic LED indication during
installation. |
|
With up to 2,000 Hz operating
frequency, the new ICB Series is one of the fastest inductive proximity sensors
available on the market, making it the perfect choice for high speed counting and
rotational speed monitoring. |
|
Permanently legible,
laser-engraved part number, cULus / CE marks, and serial number are readily visible on the
front face of the sensor. |
The ICB Series inductive proximity sensors are ideal for material handling, machine
tool, packaging, plastic, mobile equipment, agriculture, and many other industries. A wide
variety of configurations are available: |
|
Three-wire DC
inductive sensors in M12, M18, and M30 housings |
|
Single (2-15mm),
double (4-22mm), and triple (8-40mm) sensing distances |
|
All sensors are
cULus listed and CE marked |
|
Operating
temperature: -25°C to +70°C (-13° to +158°F) |
|
Long and short
nickel-plated brass housings |
|
Flush and
non-flush versions |
|
Normally open (NO)
or normally closed (NC), PNP or NPN output |
|
Two-meter PVC
cable or M12 disconnect plug |
The new ICB Series inductive proximity sensors will replace all 3-wire DC IA
inductive sensors, and older (Generation 1) non-flush versions of the M12 and M18 ICB
Series sensors. For details on products to be phased out, including a cross reference to
the new ICB Series, please refer to the attached Discontinuation
Notice.
The new ICB Series inductive proximity sensors are available from CARLO GAVAZZIs North
American network of sales offices and distributors, or at www.GavazziOnline.com.
For more information on these sensors, please
click on any of the links below:
|
|
