September 2014 - CARLO GAVAZZI is proud to announce the launch of their new CGHMI Series of HMIs available in four different sizes and constructed in one of up to three different housing bezels: economical plastic, durable aluminum or rugged, wash down resistant stainless steel.

The CGHMI Series feature ARM Cortex-A8 processors, wide panels, high resolution, 65,536 colors, 128MB ROM, 256MB RAM, WinCE operating system and image optimization for best performance. The CGHMI Series screens are available in four sizes (4.3”, 7”, 10” or 15”) which allow the end user to choose the optimum size that best fits their application requirements.


The HMIs can be mounted vertically or horizontally, whatever the end user’s application calls for. They can be powered by 11-36VDC or 90-250VAC. All models also offer an SD slot and Modbus protocol as standard features.

Extensive connectivity is possible via Profibus-DP, ProfiNet, DeviceNet, EtherNet/IP, CANopen, EtherCAT, and CC-Link.

All models are delivered with CG Design Studio, which features 112 basic symbols, high-resolution, vector format, some in six colors, flipped and in four directions in design time. The multilingual software supports: 30 languages, Online and Offline Simulation, Data Acquisition, Data Logging, Script and many other functions from Buttons, Events, Schedule, etc.

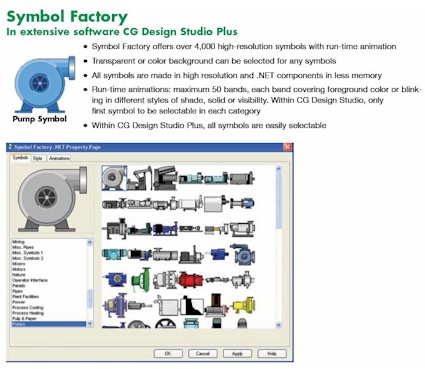

For those that enjoy more elaborate graphic designs, we offer the optional CG Design Studio Plus with Symbol Factory and over 4,000 symbols.


Technical specifications include

Four sizes offered: 4.3”, 7”, 10” and 15”
Cost-effective 4.3” and 7 “ models with IP65 plastic bezels
High-performance 7”, 10” and 15” models with IP65 aluminum bezels
Harsh-environment 7”, 10” and 15” models with rugged IP66K stainless steel bezels, protected against dust and water, with an easy-to-clean polished surface
High resolution touch panels featuring 65,536 colors
Standard 128 MB Flash memory and 256MB SDRAM
USB host port used for keyboard, USB stick and mouse
LED backlight for even-color displays and long lifetime
Open WinCE 6.0 panels for OEM business
Standard CG Design Studio software, with optional CG Design Studio Plus (featuring Symbol Factory and its 4,000+ high resolution symbols)
Optional sound output
cUL, CE and RoHS

For more information about the CGHMI Series, please click on any of the links below:

 Data Sheet    Brochure
 Press Release
