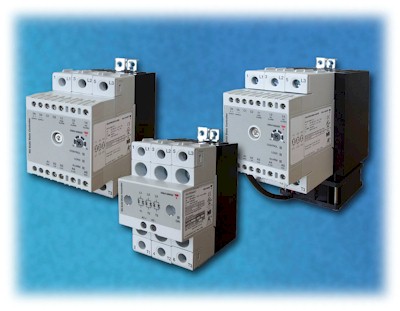

November 2013 – CARLO GAVAZZI Inc. is proud to announce its new generation of proportional output 3-phase controllers, the RGC2P and RGC3P Series. This series covers 3-phase solid state switching controllers that deliver output power in proportion to the control input voltage or current as well as external potentiometer. The RGC2P Series consists of a 3-phase, 2-pole switching device which offers an economical means of switching, because it only switches L1 and L3. The RGC3P Series consists of 3-phase, 3-pole switching devices. Various switching modes are available to cater for different application needs, such as phase angle switching for light dimming; full cycle switching for precise temperature control and a soft starting version that prevents high inrush currents associated with loads with high cold/hot resistance ratio.




The RGC2P and RGC3P Series are available in two frame sizes: 54mm or 70mm wide. RGC2P, the 2-pole switching device, offers four current ratings of 15, 25, 40 and 75 AAC per pole. While RGC3P, the 3-pole switching device, offers three current ratings of 20, 30 and 65 Amps per pole. The optional monitoring feature offers the possibility of detecting the status of mains and load, as well as for internal controller failures: open or short circuit and overheating. Alarming is implemented with an LED indication and a relay output.

The
RGC2P and RGC3P Proportional Output Controllers are the latest addition to the zero switching family of single and three phase RGC Solid State Relays and Contactors and mainly target the Food and Beverage, HVAC, Packaging/Wrapping, Printing, and Plastics markets.

Main technical features include:

3-phase solid state switching devices
Proportional output controller
Multi-voltage range: 180-660VAC
Operational current up to 75A (RGC2P) and 65A (RGC3P)
Amperage ratings based on 40°C
Optional system monitoring
cULus listed, 100kA UL508, and CE
Available proportional inputs:
- 0-20mA, 4-20mA, 12-20mA, 12-20mA
- 0-10VDC, 0-5VDC, 1-5VDC
- External potentiometer
Available output types:
- Phase angle fired
- Distributed full cycle switching
- Soft starting

The RG2P and RGC3P Proportional Output Controllers are available from CARLO GAVAZZI’s North American network of sales offices and distributors, or at www.GavazziOnline.com.
