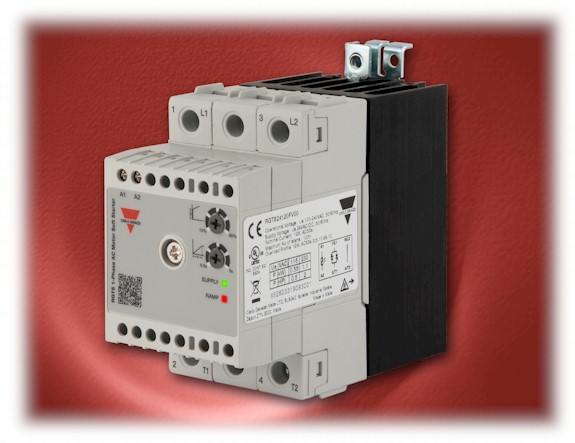

February 2019 - Carlo Gavazzi is pleased to announce the launch of our new RGTS Series single-phase motor soft-starters. They can control 120 or 240VAC induction motors up to 25A / 3Hp.
The RGTS Series is a fully solid state solution. Wire bonding technology reduces the thermal and mechanical stresses of the output chips resulting in a longer lifetime compared to other assembled technologies or electro-mechanical solutions. The RGTS is a very simple soft starter requiring just two user adjustments. The motor ramp-up time, and initial torque, can be independently adjusted via the built-in potentiometers. The green LED indicates the supply voltage presence. The ramp-up and full-voltage indication are provided through an orange LED.
The RGTS does not require a dedicated control signal. Hence less wiring is involved. Despite its simplicity, the RGTS solution that can help to reduce motor starting current by 40% compared to a direct on-line start.
The features of the RGTS Single-Phase Solid State Soft-Starters include:
- 1-phase soft-starter
- All solid-state device, no bypass relays
- Universal 120-240VAC line voltage rating
- Controlled by line voltage
- Option for VAC or VDC supply voltage
- Maximum current rating 12, 16 or 25AAC
- Up to 10 starts per hour at rated current
- Voltage ramp-up control algorithm
- Status indicating LEDs
- CE approved, cULus listed
The RGTS is an ideal solution for simple applications such as centrifugal pumps, compressors, and fans that do not require a start capacitor.
The RGTS Series is available from Carlo Gavazzi's network of sales offices and distributors in the Americas, or at www.GavazziOnline.com.
More information on these new products can be found from the links below:
| RGTS Data Sheet | Agriculture Application Note | |
| Press Release | HVAC Application Note | |
